Gunpla Surfacer vs Primer: 500, 1000, 1200 or 1500?

GSI Creos sells Mr. Surfacer 1000 as its standard Gunpla surfacer, and the number on the label works like a sanding grit, not a quality grade. The choice for a beginner is narrower than the shelf suggests: whether you need a surfacer at all, and if so, the 1000 or a primer for a special job.

Gunpla surfacer? (quick answer)

A surfacer is a thick gray undercoat that fills fine scratches and gives paint an even base. GSI Creos's plain Mr. Surfacer 1000 is the one to start with. If you build without paint, you can skip it.

Key Takeaways

• 1000 is the default: GSI Creos calls Mr. Surfacer 1000 its most versatile, standard surfacer.
• 500 fills: the maker says it can be used as dissolved putty for scratches.
• 1200 and 1500 are finer: 1500 Black is sold as the base for metallic and pearl paint.
• Primer Surfacer 1000 is for odd materials: metal etching parts and resin.
• US prices, Oct 24: spray cans $6.99 to $12.99; bottles from $5.75.

Overview: surfacer vs primer, in the makers' words

Two jobs hide under one gray can. A primer makes paint grip and hides the color underneath. A surfacer adds body that fills small marks, so you can sand the part smooth before color.

The makers blur the line on purpose. GSI Creos describes Mr. Primer Surfacer 1000 as "a surfacer with primer ingredients" built on Surfacer 1000, usable on metal etching parts and on resin that paint grips poorly (our translation). Tamiya calls its gray can a surface primer that "provides a sturdy undercoat to mask the color of the material underneath, and decreases topcoat peeling."

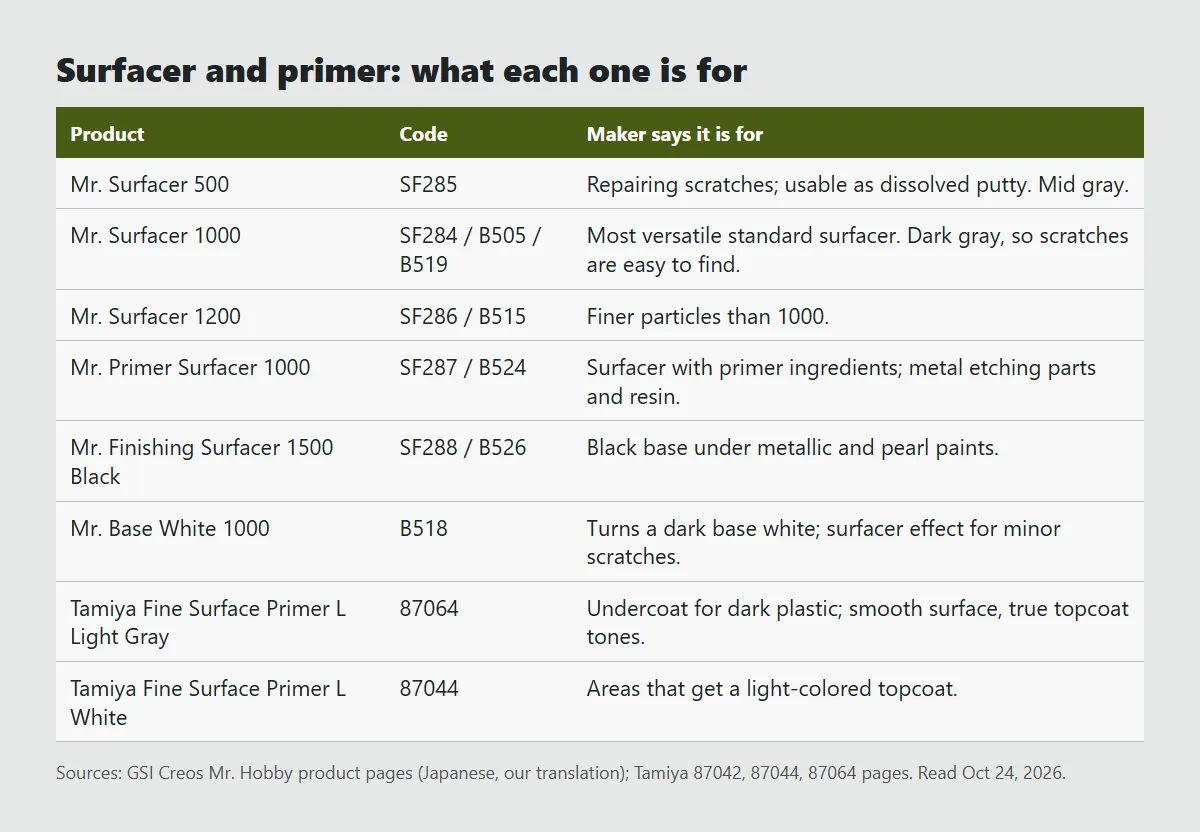

Diagram: PlamoDesk. Sources: GSI Creos Mr. Hobby product pages (Japanese, our translation) and Tamiya 87042, 87044 and 87064 pages, read Oct 24.

Desk note: We read 15 surfacer and primer listings at Gundam Planet and USA Gundam Store on Oct 24. Fourteen were available, from $5.75 for a 40 ml bottle to $12.99 for a Tamiya 180 ml can. Surfacer is not hard to find in the US; picking the right number is the real job.

Which Gunpla surfacer number to pick

Mr. Surfacer 500. GSI Creos says it is best for repairing scratches and can be used as dissolved putty (our translation). It is a mid gray. Think of it as a filler you brush into a gouge, then sand.

Mr. Surfacer 1000. The standard. The SF284 page calls it the most versatile surfacer, says to polish it once dry with Mr. Lapros or waterproof paper, and explains the color: dark gray, so scratches are easy to find. That last detail is the point. A surfacer is also an inspection coat.

Mr. Surfacer 1200. Finer particles than the 1000, per its maker. A smoother base when you are not filling anything.

Mr. Finishing Surfacer 1500 Black. GSI Creos says the black version is ideal under metallic and pearl paints. Its spray dries "slightly faster" than the bottle, the maker adds.

Mr. Base White 1000. An undercoat for turning a black or red base white, with a surfacer effect for minor scratches (our translation).

On the Tamiya side, the Fine Surface Primer Light Gray (87064) is "perfect for dark plastic" and helps you "get true tones from your topcoats", in a 180 ml can. The white version (87044) is for areas getting a light topcoat.

GODEEPER: Surfacer goes under color; top coat goes over everything. Best Gunpla top coat for beginners →

Step-by-Step: using a surfacer on Gunpla

1. Cut and sand nubs first. Surfacer comes after the knife and the sanding stick, not instead of them.

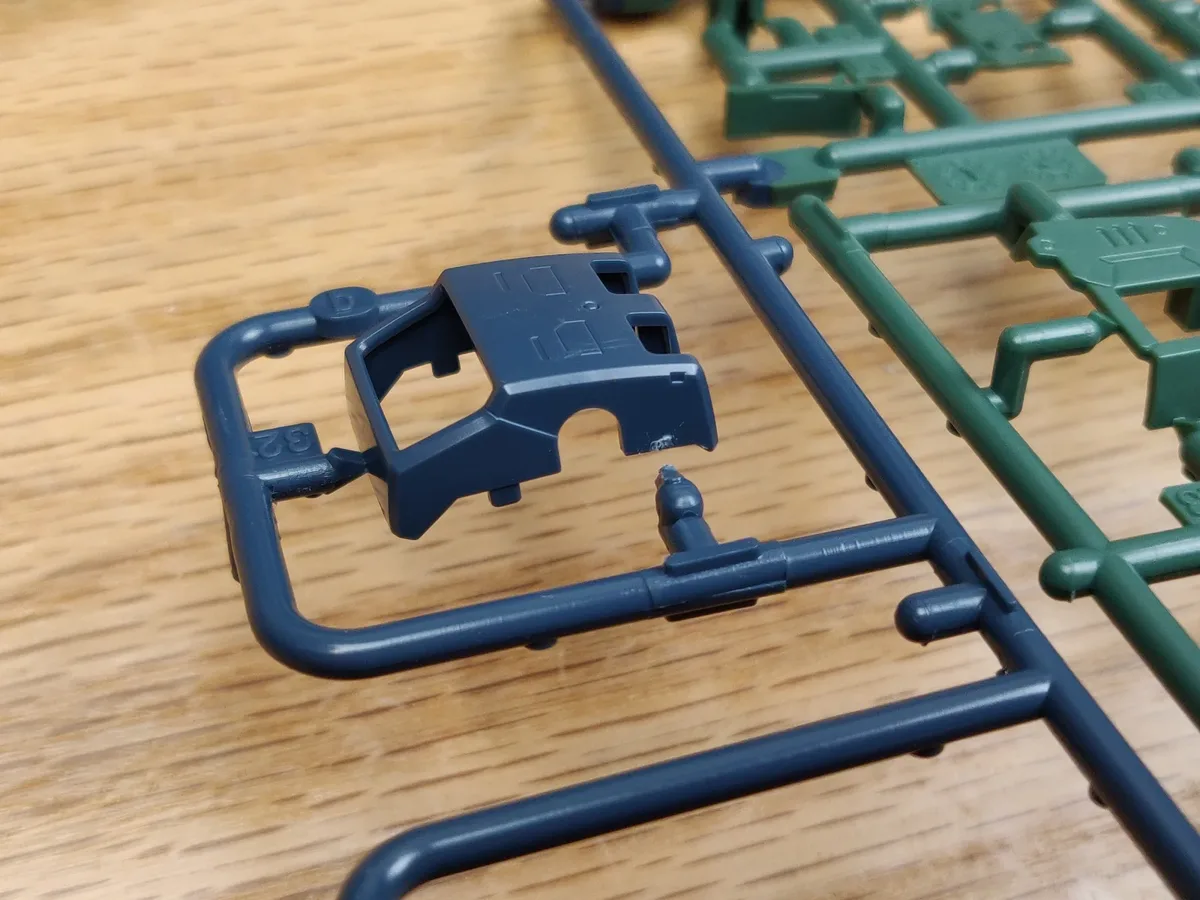

A cut part with its gate nub still on it. Trim this before any surfacer. Photo: Gravis / Wikimedia Commons, CC BY-SA 4.0.

2. Pick by job. Gouge or sink mark: brush on 500. General repair or paint prep: 1000. Smooth base, nothing to fill: 1200. Metallic finish: 1500 Black. Metal or resin parts: Primer Surfacer 1000.

3. Choose spray or bottle. Mr. Surfacer 1000 comes in both. A spray can is the simpler route for a first kit; the bottle suits brushing 500 into one gouge.

A generic aerosol can, not a surfacer product. Photo: Andrew Magill / Wikimedia Commons, CC BY 2.0.

4. Let it dry, then look. The dark gray of the 1000 shows the scratches you missed. Fix them now, not after paint.

5. Polish the coat. GSI Creos's own step: once dry, polish with a fine cloth or waterproof paper for a complete repair.

6. Thin carefully for an airbrush. On the Primer Surfacer 1000 page, GSI Creos warns that thinning more than 2x with Mr. Thinner can make the ingredients solidify, and recommends Mr. Leveling Thinner (our translation).

Tips: where beginners waste a can

• Do not surfacer a straight build by habit. No maker page we read says a snap-fit kit needs it. GSI Creos and Tamiya pitch it for repairs, modifications and paint prep.
• Match the gray to the topcoat. Tamiya puts the light gray under dark plastic and the white under light topcoats.
• Black under metallics. That is the job GSI Creos gives the 1500 Black.
• Check the size. Mr. Surfacer 1000 comes as a 40 ml bottle, a 100 ml spray (B505) and a 170 ml spray; the 170 ml was $9.75 at USA Gundam Store and $10.00 at Gundam Planet.
• The Japan price is moving. The SF284 page lists 374 yen with tax and a revision to 440 yen "from around July" (our translation).

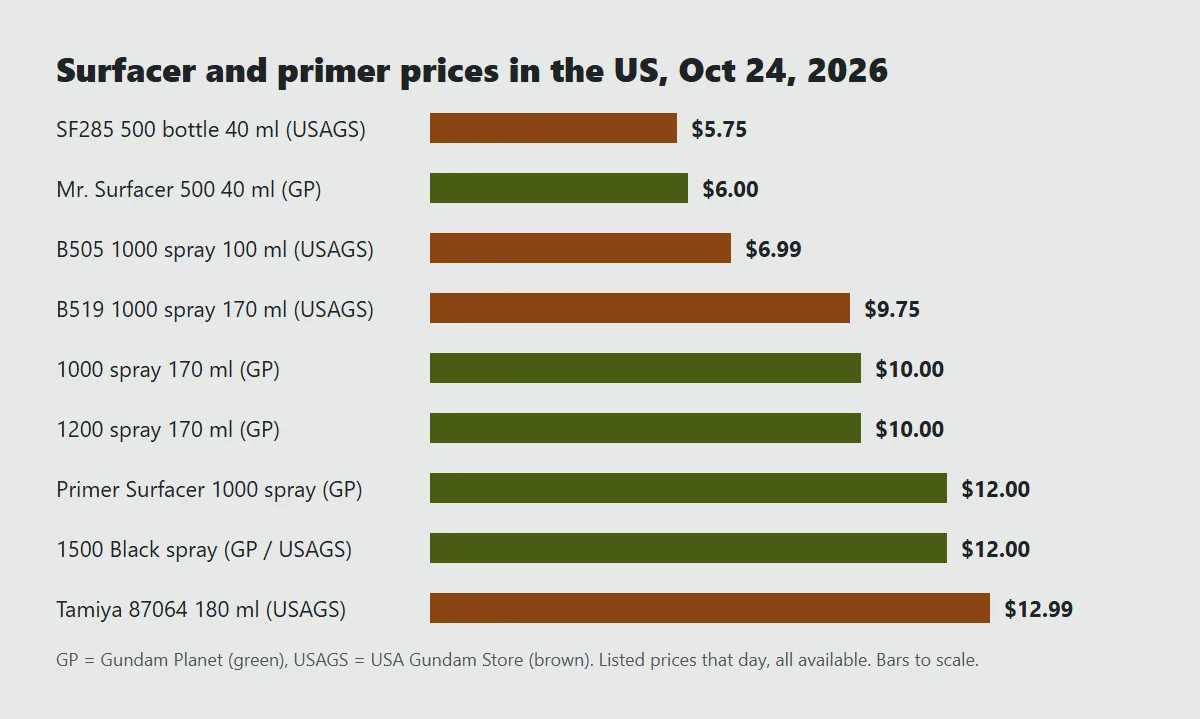

Diagram: PlamoDesk. Sources: Gundam Planet and USA Gundam Store listings, Oct 24.

GODEEPER: The nippers and sanding sticks that come before any surfacer. Gunpla tools guide →

What builders say

One r/Gunpla reply from this week, read through Arctic Shift. It is advice, not a fact source.

"personally i think the best way is first built it to see what would be visible when kit is assembled, then apply primer to each piece individually, then paint" u/PeponiBoi on r/Gunpla, October 2026

Dry-fit first, prime only what shows. It saves surfacer and sanding.

What we don't know yet: Neither GSI Creos nor Tamiya gives a drying time in minutes on the pages we read, and GSI Creos gives no thinning ratio for plain Mr. Surfacer. Wait until the coat is fully dry before sanding.

Our take

Buy one can of Mr. Surfacer 1000 when you start painting; skip surfacer entirely on straight builds. It is the maker's standard, and its dark gray shows the scratches you missed. It cost $9.75 at USA Gundam Store on Oct 24. Add 500 for deep scratches or 1500 Black for metallics only when a kit asks for it; Tamiya's $12.99 primer is the pick if you want a lighter gray under dark plastic.

How we checked this

On Oct 24, 2026 we read GSI Creos's Japanese pages for Mr. Surfacer 500, 1000 and 1200, Mr. Primer Surfacer 1000, Mr. Finishing Surfacer 1500 Black and Mr. Base White 1000, Tamiya's pages for 87042, 87044 and 87064, and US listings at Gundam Planet, USA Gundam Store and Newtype. A research assistant gathered the pages; we re-read the SF284 page and both shops' prices. Bandai's site was in maintenance. We did not test these products.

Frequently Asked Questions

What is the difference between surfacer and primer for Gunpla? A surfacer fills and evens out small scratches; a primer helps paint grip. GSI Creos sells both in one bottle as Mr. Primer Surfacer 1000, a surfacer with primer ingredients for metal and resin. Its plain Mr. Surfacer 1000 is the dark gray standard, made to show scratches.

Which Mr. Surfacer should a beginner buy? Mr. Surfacer 1000. GSI Creos calls it its most versatile, standard surfacer, and the spray was $9.75 at USA Gundam Store and $10.00 at Gundam Planet on Oct 24. Buy 500 only to fill deeper scratches, and 1500 Black only under metallic paint.

Do I need to prime Gunpla before painting? None of the maker pages we read says a snap-fit kit must be primed. Tamiya says its surface primer gives a sturdy undercoat that masks the plastic color and decreases topcoat peeling, which matters most when you paint over colored plastic or a repair.

What does the number on Mr. Surfacer mean? It works like a sanding grit: a higher number means finer particles. GSI Creos says Mr. Surfacer 1200 has finer particles than 1000, that 500 can be used as dissolved putty for scratches, and sells 1500 as a finishing surfacer, including a black version for metallics.

Is Tamiya Fine Surface Primer the same as Mr. Surfacer? Tamiya sells it as a primer. Its Fine Surface Primer Light Gray (87064) comes in a 180 ml can and, Tamiya says, gives a smooth surface and true tones from topcoats. USA Gundam Store had it at $12.99 on Oct 24, against $9.75 for Mr. Surfacer 1000 spray.

Can I thin Mr. Surfacer for an airbrush? Yes, but watch the thinner. GSI Creos warns that thinning Mr. Primer Surfacer 1000 more than 2x with Mr. Thinner can make it solidify, and recommends Mr. Leveling Thinner. Newtype's listing says Mr. Surfacer 1000 takes either Mr. Thinner or Mr. Leveling Thinner.
